Mold Head Tail Gas Separation & Purification

The exhaust in mold contains VOC, air and oil-like substances with small droplet diameters, e.g. mechanically generated droplets between 1.0 and 150 μm, and coalesced droplet between 0.10 and 30 μm.

The mechanism of separation and purification is crucial and the process is determined by a combination of elements, each with its own characteristics and scope of application. Optimized safe, stable, reliable and cost competitive are critical during selection.

Technical Solution

There are many technical routes for treating mold head emissions, the broad categories can be divided into:
1)Wet method: mainly solution absorption;
2)Dry method:
A.Traditional methods includes Combustion, Catalytic oxidation, Adsorption methods etc.
B.Dry depth separation and purification by Cleanmax.

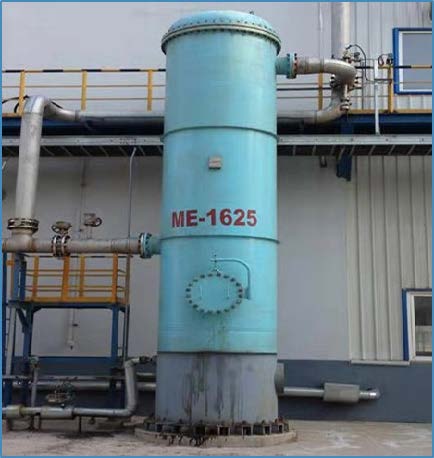

We have developed the MT-5 system dedicated to the separation and purification of mould head exhaust gas, hereinafter referred to as: MT-5.

MT-5 combines adsorption and coalescing mechanisms to purify mould head tail gas, with a gas-liquidseparation efficiency up to 99.9%.

The MT-5 system is generally vertical and consists of four integrated units: primary separation, secondary coalescence, tertiary adsorption and quaternary interception. The four units work in combination. Reasonable construction, small footprint, low energy consumption, high safety and no maintenance. High separation and purification precision, safe and stable system, simple operation, low investment and environmental friendly.
